Hanging Pintle Portal type Take-up

Hanging Pintle Portal type Take-up


The traversing take-up is of the hanging pintle portal design. The telescopic lifting arms are narrow, allowing good access to the reel when fastening the cable.


The take-up has two main components: the portal frame and the traversing carriage. The telescopic lifting arms are suspended from the moving carriage, which is wheel mounted on the beams. All pintles movements, up-down and in-out, are motorized.


The carriage traverses during operation to maintain a straight centerline of the cable entering the reel. The traversing pitch and turning points can be set by hanging control panel push-buttons.


The reel is dog-pin driven by a Vector controlled AC-motor over a 2-step gearbox. The main motor can be run with constant torque or controlled by either dancer or accumulator. The motor has forced ventilation and is equipped with an electromagnetic brake, working as holding brake or an emergency stop brake.

One set of pintles is included in the basic machine.

The guide rollers are suspended from the portal frame. The rollers are easily adjustable for different cable diameters.

All functions such as reel rotation, traversing, pintles movements and auto reel handling are activated and controlled from the hanging control panel.

Traversing of take-up

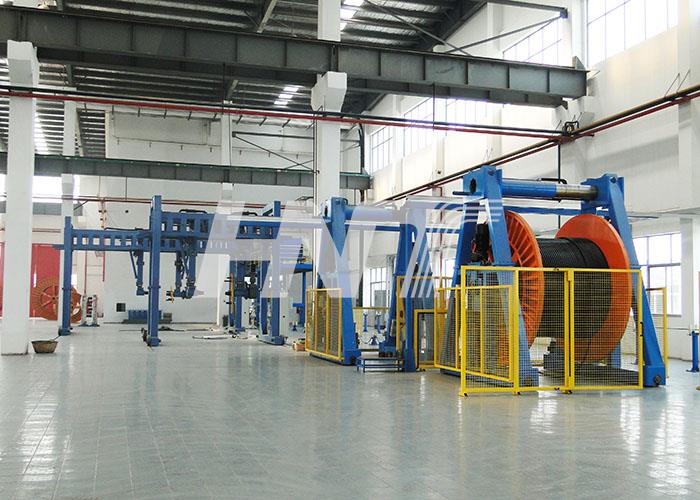

The beams of the take-up are long enough to allow the reels to be changed by the side of the production line. Two take-ups positioned behind each other is often the best solution for continuous production.

Technical Parameter:

Type

HT25

HT32

HT36

HT42

Reel Dia.

1250/2500

1600/3200

2000/3600

2500/4200

Max. Flange Dia.(mm)

2500

3200

3600

4200

Min Flange Dia.(mm)

1250

1600

2000

2500

Min Overall Width(mm)

900

1180

1500

1900

Max. Overall Width(mm)

1900

2120

2300

2400

Min. Barrel Dia.(mm)

500

800

2600

2800

Bore(mm)

  80(100-125)

  80(100-125)

200

200

Min. Wire Dia. (mm)

7

8

20

30

Max. Wire Dia.(mm)

70

120

140

160

Max. Rotation Speed(RPM)

7/17/37

7/17/37

6/12/22

6/12/22

Traverse range(mm)

8-90

9-120

20-140

30-160

Motor Type(KW)

7.5

11

15

18.5

Max. Reel Weight(KG)

12000

18000

25000

30000

Customer Feedback:
Cutomers-feedback

Our Customers:
Official Contact:
Ms. Sunny
Export Manager
Email: sunny@hengtaiwx.com

Mobile/whatsapp:+8613771757317
Youtube Add:
https://www.youtube.com/channel/UC5OoXV8kS7-9iAteV_rAAVg
