Portal type Pay off | Take up

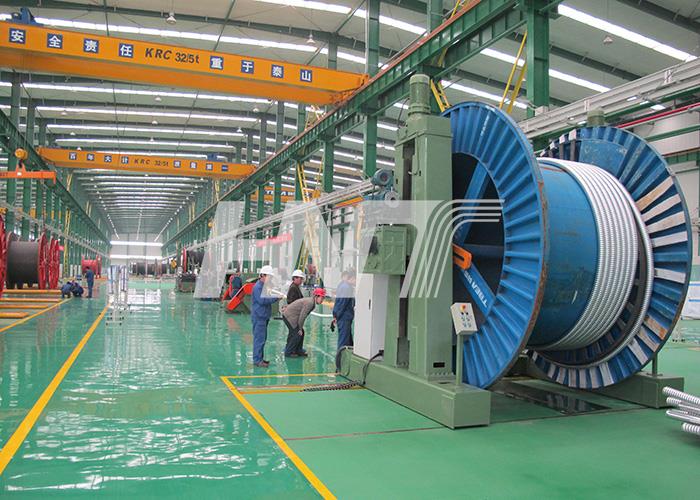

Portal type Floor Movable Take-up:

Loading and unloading method is a portal movable structure, the pintle of the reel are driven by two motors via a cycloidal pinwheel reducer, each of the pintle can be lifted separately or simultaneously. It is equipped with mechanical protection and electrical protection devices and with accessories pintle design to meets the installation of different specifications of the bobbin; Bobbin clamping is realized by the motor, and it is equipped with mechanical protection and electrical protection device. Loading and unloading of the bobbin is very convenient.


The Take-up is the AC motor drive the gearbox to drive bobbin, and the gearbox is infinitely variable; Siemens 200 PLC+ imported Siemens governor is used to control the motor operation. The traverse pitch and bobbin information can be input in the control panel,PLC control with coil diameter calculation function can automatically control the tension and reverse direction. The traverse is driven by the motor to reduce the gear box and the guide wheel, to control the pitch of the traverse, and the gear box is directly connected to the traverse shaft;


2 method of the take-up control: torque control and speed control which can be manually switched.

Brake: with pneumatic butterfly brake, solenoid valve control.


Technical Parameter:

Type

TUB25

TUB32

TUB36

TUB42

TUB45

TU50

Reel Dia.

1250/2500

1600/3200

1800/3600

2000/4200

2000/4500

2500/5000

Max. Flange Dia.(mm)

2500

3200

3600

4200

4500

5000

Min Flange Dia.(mm)

1250

1600

1800

2000

2000

2500

Min Overall Width(mm)

900

1180

1400

1900

1900

1900

Max. Overall Width(mm)

1900

2120

2300

2400

2400

2500

Min. Barrel Dia.(mm)

500

800

2500

2800

2800

3000

Bore(mm)

 80(100-125)

80(100-125)

200

200

200

200

Min. Wire Dia. (mm)

7

8

20

30

30

40

Max. Wire Dia.(mm)

70

120

140

160

160

180

Max. Rotation Speed(RPM)

7/17/37

7/17/37

6/12/22

6/12/22

6/12/22

6/12/22

Traverse range(mm)

8-90

9-120

20-140

30-160

30-160

40-180

Max. Reel Weight(KG)

12000

18000

25000

30000

35000

40000
